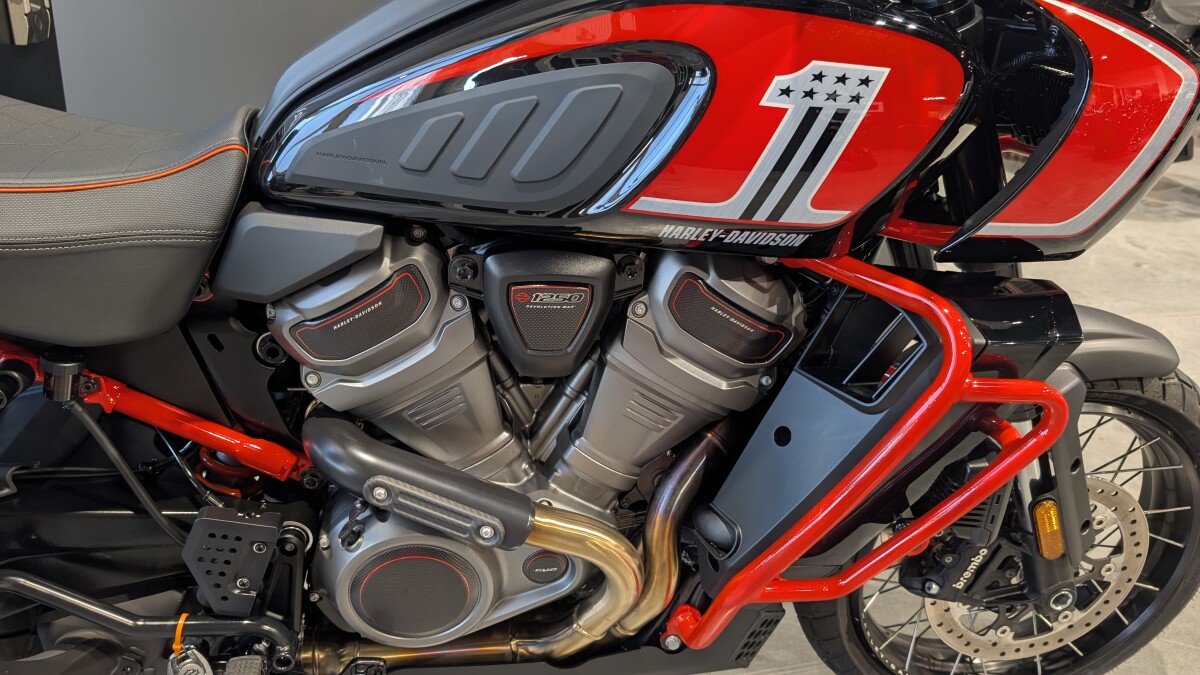

‹ Home › Inventory › 2024 Harley-Davidson® CVO™ Pan America® Legendary Orange

2,214KM

$31,899.00 This price includes all applicable fees, only the taxes and licensing are extra. Save your money and take advantage of easy Harley-Davidson® financing solutions, we'll explain how. "We have you covered" with up to 5 years, unlimited mileage H-D™ Factory Endorsed Coverage Available. Details in store.

Fully loaded for highway trips and off-grid rips.

Specifications

Dimensions

add remove
- Length:

  2345 mm
- Rake (steering head):

  25
- Trail:

  108 mm
- Wheelbase:

  1585 mm
- Tires, front specifications:

  120/70R19 60V
- Tires, rear specifications:

  170/60R17 72V
- Fuel capacity:

  21.2 l
- Oil capacity:

  1.1 l
- Weight, as shipped:

  284 kg
- Weight, in running order:

  298.92 kg
- Luggage capacity – volume:

  4.24 cu ft (0.12 m³)
- Tire, type:

  Michelin® Scorcher “Adventure”, Radial
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  105 mm
- Stroke:

  72.3 mm
- Displacement:

  1252 cm³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  129 Nm
- Engine torque (RPM):

  6,750
- Lean angle, right (deg.):

  42
- Lean angle, left (deg.):

  42
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  46 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Front fork:

  47mm inverted fork with electronically adjustable semi-active damping control and Adaptive Ride Height (ARH). Aluminum fork triple clamps
- Rear shocks:

  Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping and Adaptive Ride Height (ARH)
- Wheels, front type:

  Annodized aluminum tubeless laced
- Wheels, rear type:

  Annodized aluminum tubeless laced
- Brakes, type:

  Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Electric

add remove
- Lights (as per country regulation), indicator:

  Daymaker Adaptive LED Headlamp with 6-segment LED banking lamp; All LED Tail/Stop lamp with signature tail lighting; LED bullet turn signals
- Gauges:

  6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, mu
Infotainment

add remove
- Screen size:

  6.8 in
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Languages:

  Arabic, Chinese, (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
