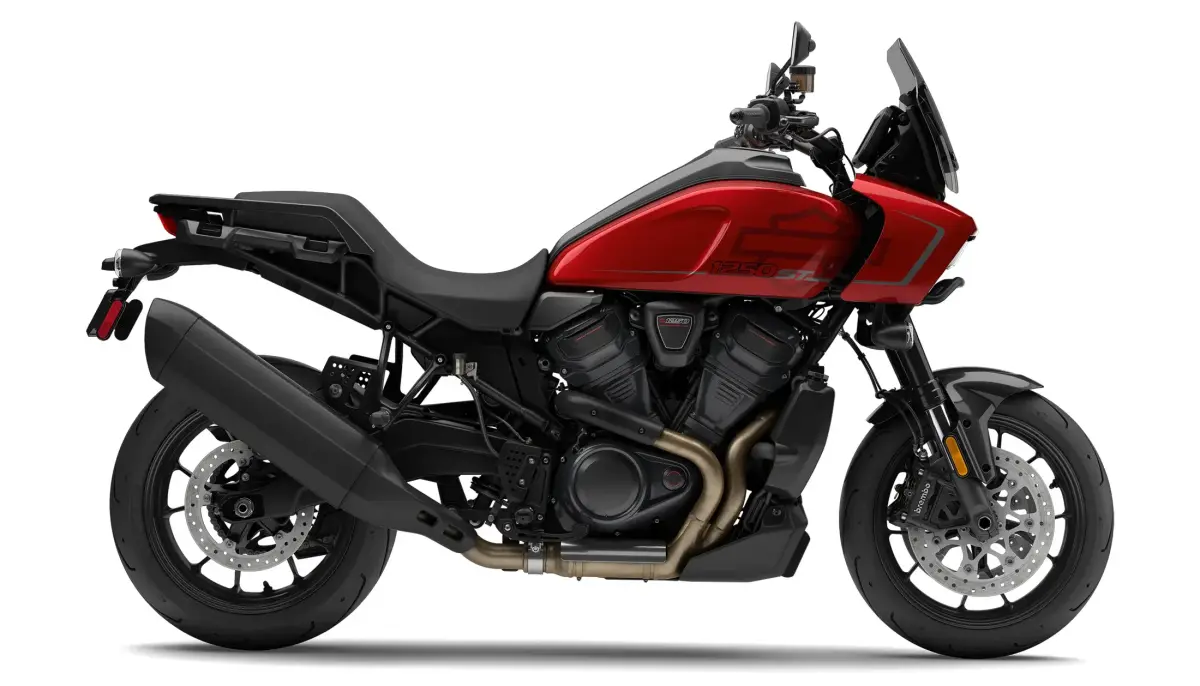

‹ Home › Inventory › 2025 Harley-Davidson® Pan America® 1250 ST Brilliant Red

Military and Police promotions available.Ride into the new year on the Harley-Davidson® you’ve been waiting for.

$27,954.00. Price Includes Dealer PDI fee, Dealer Admin fee and OMVIC fee, Only taxes, Licensing and financing fees are extra. Save your money and take advantage of easy Harley-Davidson® financing solutions, we'll explain how. "We have you covered" with up to 7 years, unlimited mileage H-D™ Factory Endorsed Coverage Available. Details in store.

Building on the proven performance of the Pan America platform, the 2025 Pan America 1250 ST is reimagined for faster, more comfortable, and capable pavement performance, with lowered suspension, quick-shifting, 17-inch wheels, high-performance tires, and a slimmer, lighter profile.

Specifications

Dimensions

add remove
- Length:

  2240 mm
- Ground clearance:

  170 mm
- Rake (steering head):

  25
- Trail:

  95 mm
- Wheelbase:

  1570 mm
- Tires, front specifications:

  120/70R19 60V
- Tires, rear specifications:

  180/55ZR17 73W
- Fuel capacity:

  21.2 l
- Oil capacity:

  3.1 l
- Weight, as shipped:

  230 kg
- Weight, in running order:

  245.85 kg
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  105 mm
- Stroke:

  72.3 mm
- Displacement:

  1252 cm³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  124 Nm
- Engine torque (RPM):

  6750
- Horsepower:

  149 HP / 111 kW @ 8750 rpm
- Lean angle, right (deg.):

  37
- Lean angle, left (deg.):

  37
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  46 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Front fork:

  47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps
- Rear shocks:

  Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, type:

  Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
- ABS:

  Standard
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
