‹ Home › Inventory › 2026 Harley-Davidson® Fat Boy® - Brilliant Red Chrome Trim

$30,554. This price includes all applicable fees, only the taxes and licensing are extra. Save your money and take advantage of easy Harley-Davidson® financing solutions, we'll explain how. "We have you covered" with up to 7 years, unlimited mileage H-D™ Factory Endorsed Coverage Available. Details in store.

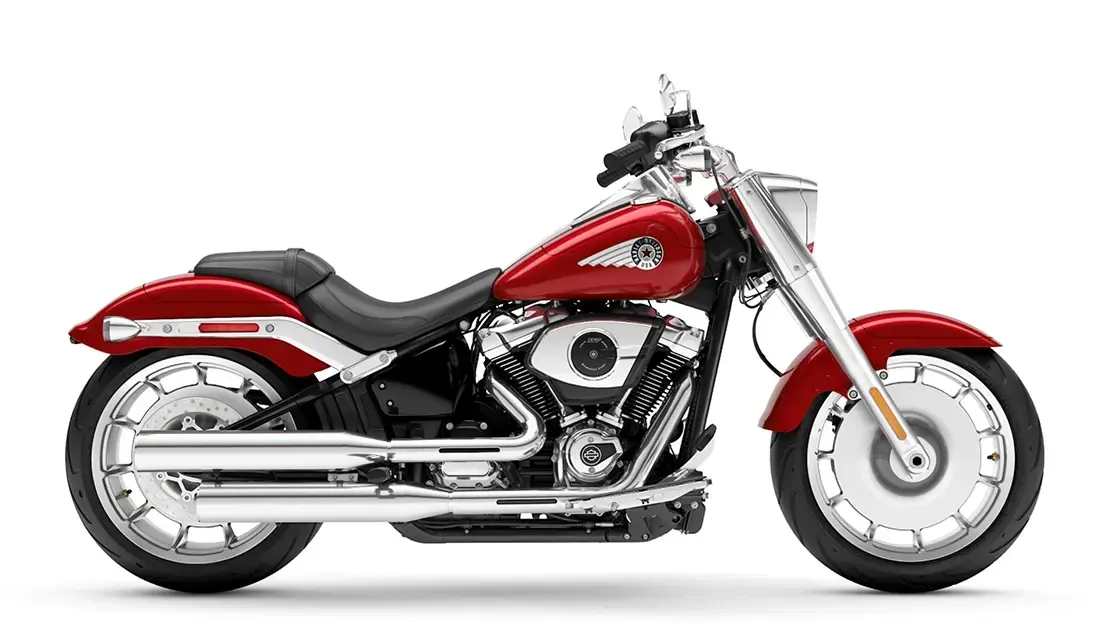

Wide tires front and back. Classic Lakester cast aluminum wheels. The iconic steamroller stance, backed by a Milwaukee-Eight® 117 motor. LED lighting all around, Rider Safety Enhancements standard, and fine factory details that honor one of Harley-Davidson's most legendary silhouettes. The 2026 Fat Boy is bold by design.

Specifications

Dimensions

add remove
- Length:

  2365 mm
- Seat height, unladen:

  675 mm
- Ground clearance:

  125 mm
- Trail:

  104 mm
- Wheelbase:

  1650 mm
- Tires, front specifications:

  160/60R18,70V,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  4.2 l
- Weight, as shipped:

  303 kg
- Weight, in running order:

  314.79 kg
- Tire, type:

  Michelin® Scorcher 11 front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Custom
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  171 Nm
- Engine torque (RPM):

  3000
- Horsepower:

  103 HP / 77 kW @ 4800 rpm
- Lean angle, right (deg.):

  25.6
- Lean angle, left (deg.):

  25.6
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Machined, Lakester cast aluminum
- Wheels, rear type:

  Machined, Lakester cast aluminum
- Brakes, type:

  Front and rear silver, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
